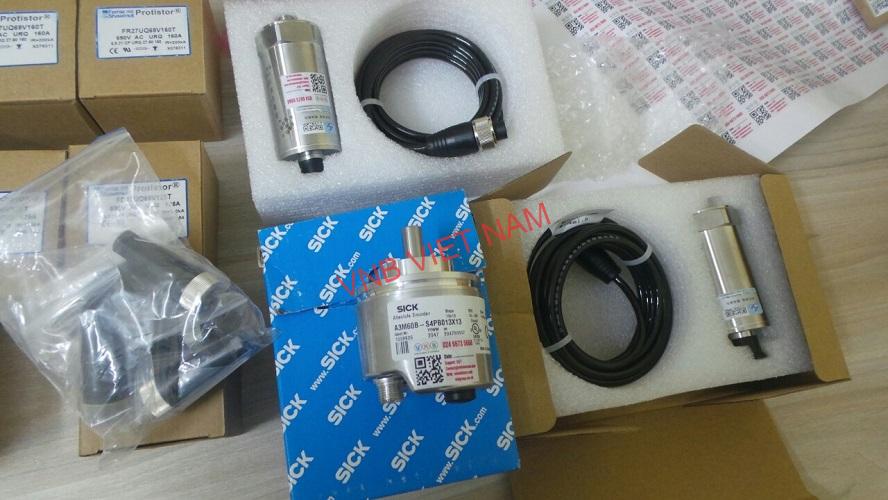

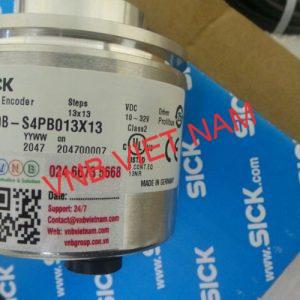

Encoder A3M60B-S4PB013X13 SICK
Liên Hệ

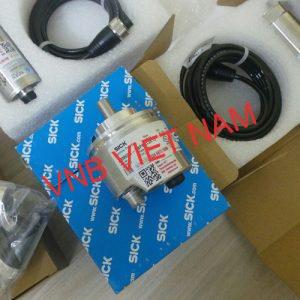

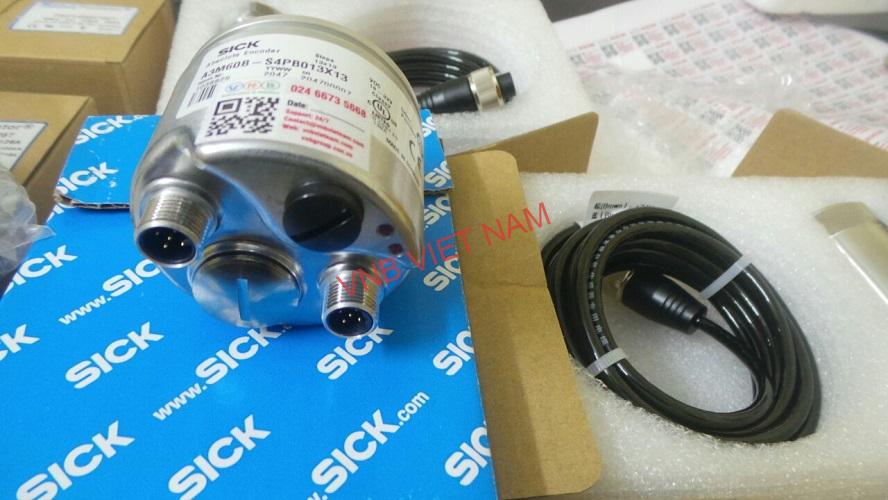

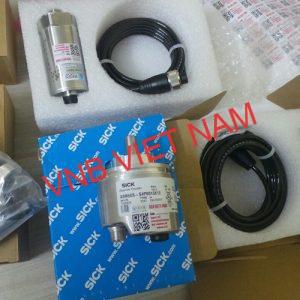

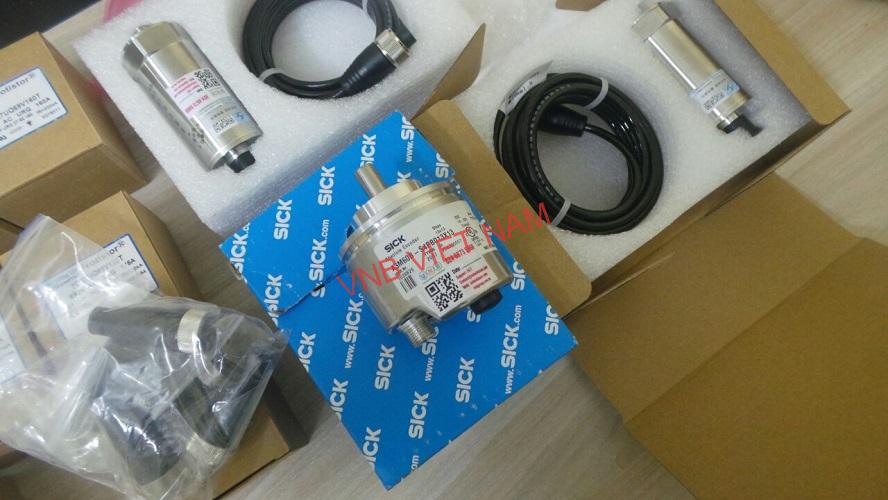

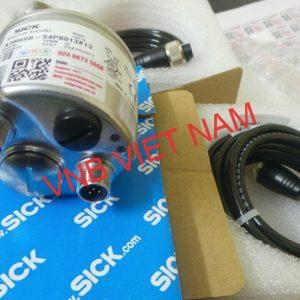

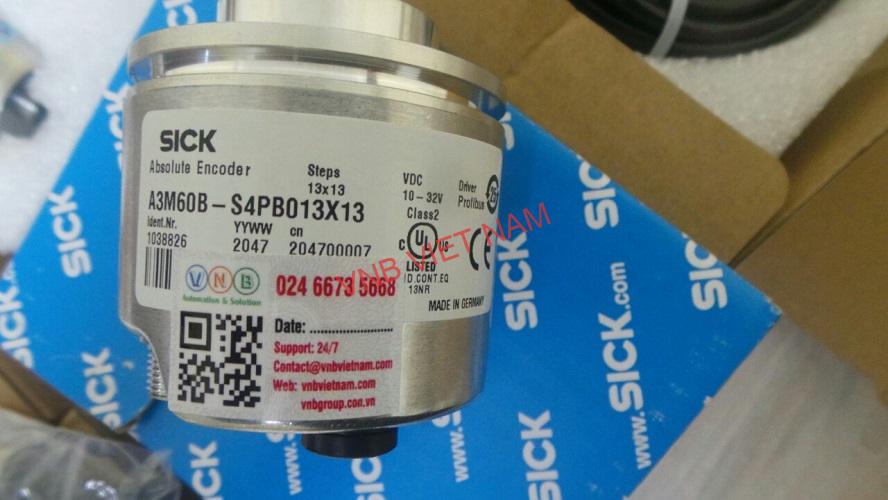

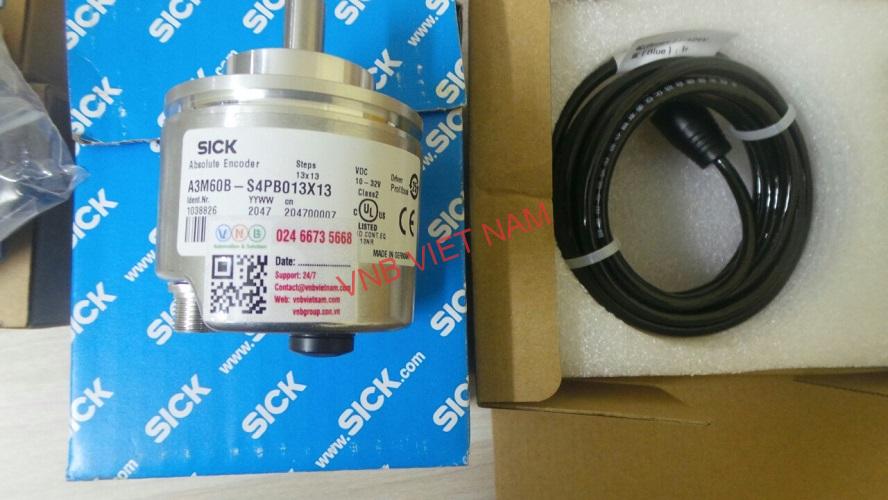

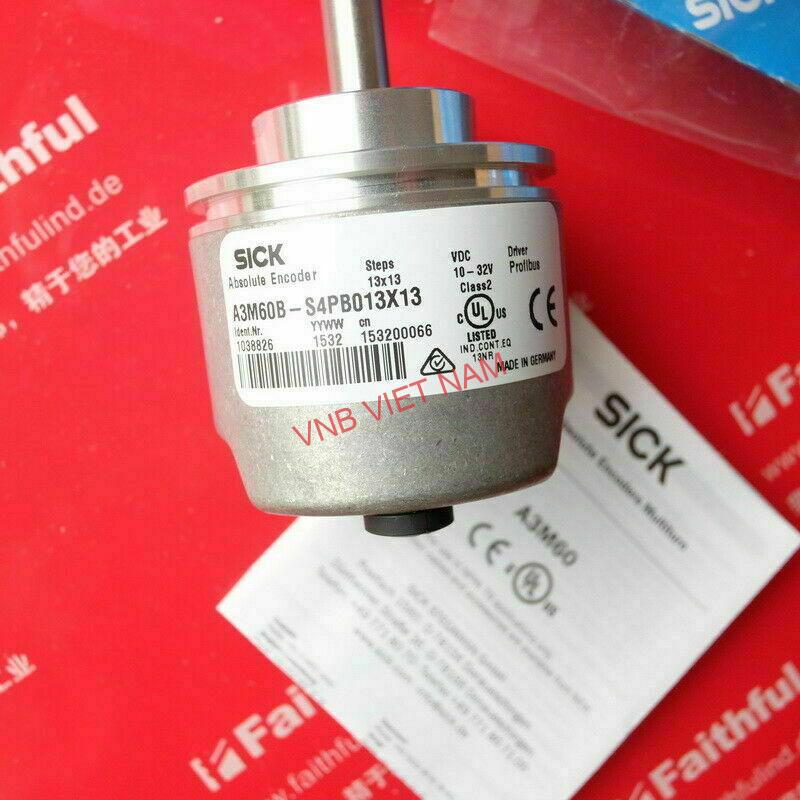

ENCODER Profibus A3M60B-S4PB013X13 ABSOLUTE ENCODER Profibus
Manufacturer: Sick
Manufacturer part number: 1038826
Weight(kg): 0.4360
Có CO,CQ đầy đủ
Bảo hành 12 Tháng
Thông tin liên hệ:
Email: Contact@vnbvietnam.com | Justin.nguyen@vnbvietnam.com
Liên hệ: 02466 735 668
Products specifications
- Robust absolute multiturn encoder with up to 31 bits (14 bits singleturn and 17 bits multiturn)
- Face mount flange, servo flange or blind hollow shaft
- Compact design (
- Integrated PROFIBUS interface with DP V0, V1 and V2 functionality (dependent on type)
- Connection system: 3x M12 connectors
- Protection class up to IP67
- Operating temperature: -30 °C to +80 ? (dependent on type)
Your benefits
- High level of system reliability even in extreme environmental conditions
- Lower maintenance costs due to non-contact single and multiturn magnetic scanning
- Space-saving, cost-efficient design ensures easy integration into applications with limited space
- High level of productivity due to quick communication and position calculation
- Immune to contamination and condensation, making it ideal for harsh environmental conditions
- Very good price-performance rati
| Interfaces | |
| Electrical interface: | PROFIBUS DP |
| Bus: | PROFIBUS DP |
| Data protocol: | PROFIBUS DP V0, PROFIBUS DP V1 + V2 |
| Data transmission rate (baud rate): | 12 MBaud |
| Bus termination: | DIP switch |
| Ambient data | |
| EMC: | (according to EN 61000-6-2 and EN 61000-6-3) |
| Enclosure rating: | IP 65 (according to IEC 60529), Shaft, IP 67 (according to IEC 60529), housing 1) |
| Permissible relative humidity: | 95 % (Condensation not permitted) |
| Working temperature range: | -10 °C … 70 °C |
| Storage temperature range: | -40 °C … 100 °C |
| Resistance to shocks: | 100 g, 6 ms (according to EN 60068-2-27) |
| Resistance to vibration: | 30 g, 10 Hz … 2,000 Hz (according to EN 60068-2-6) |
