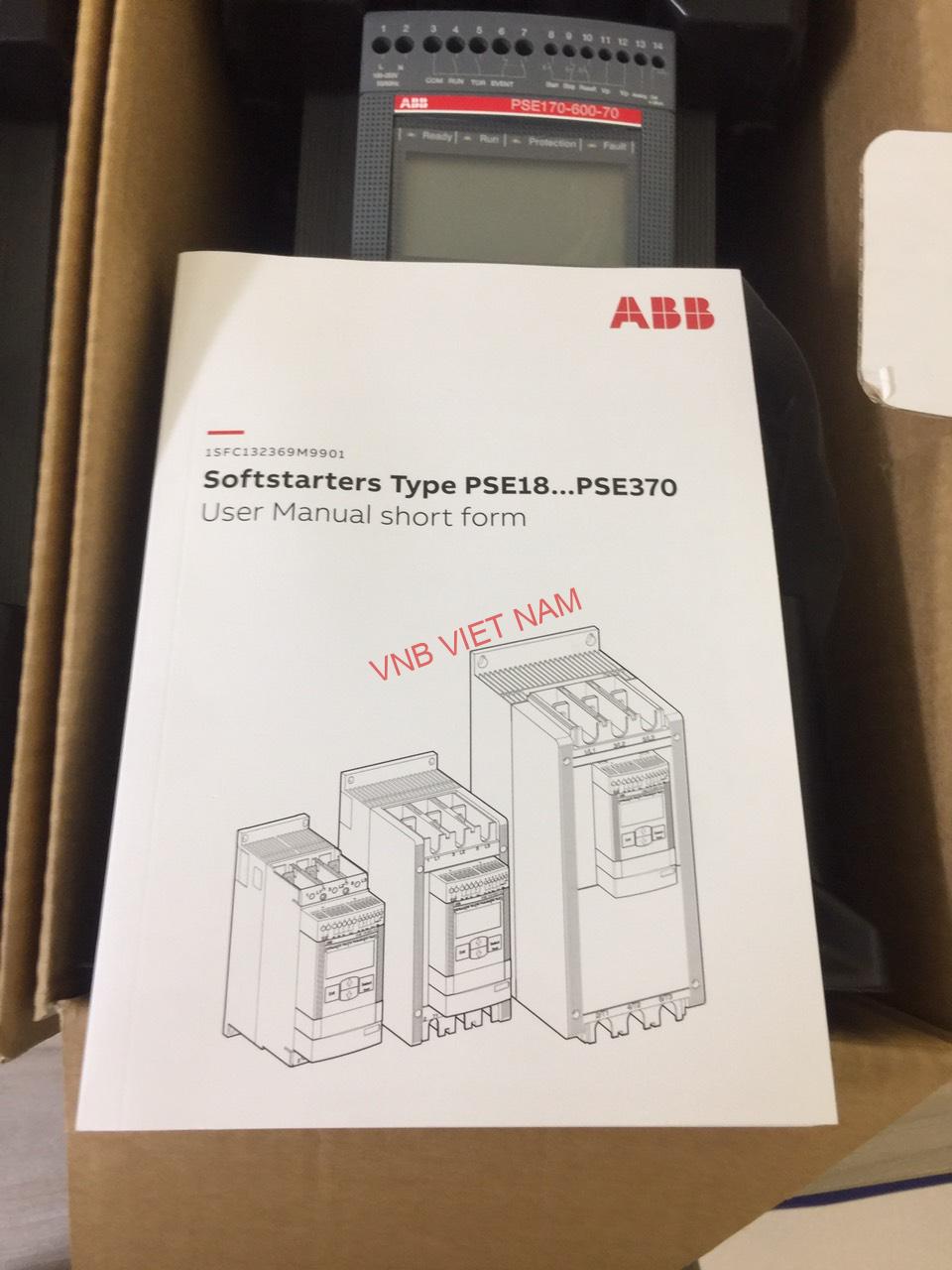

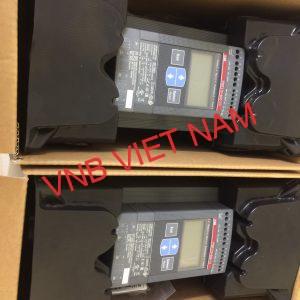

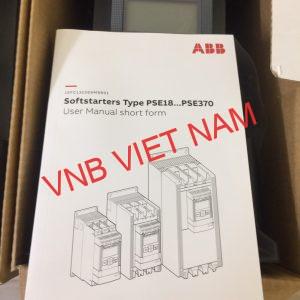

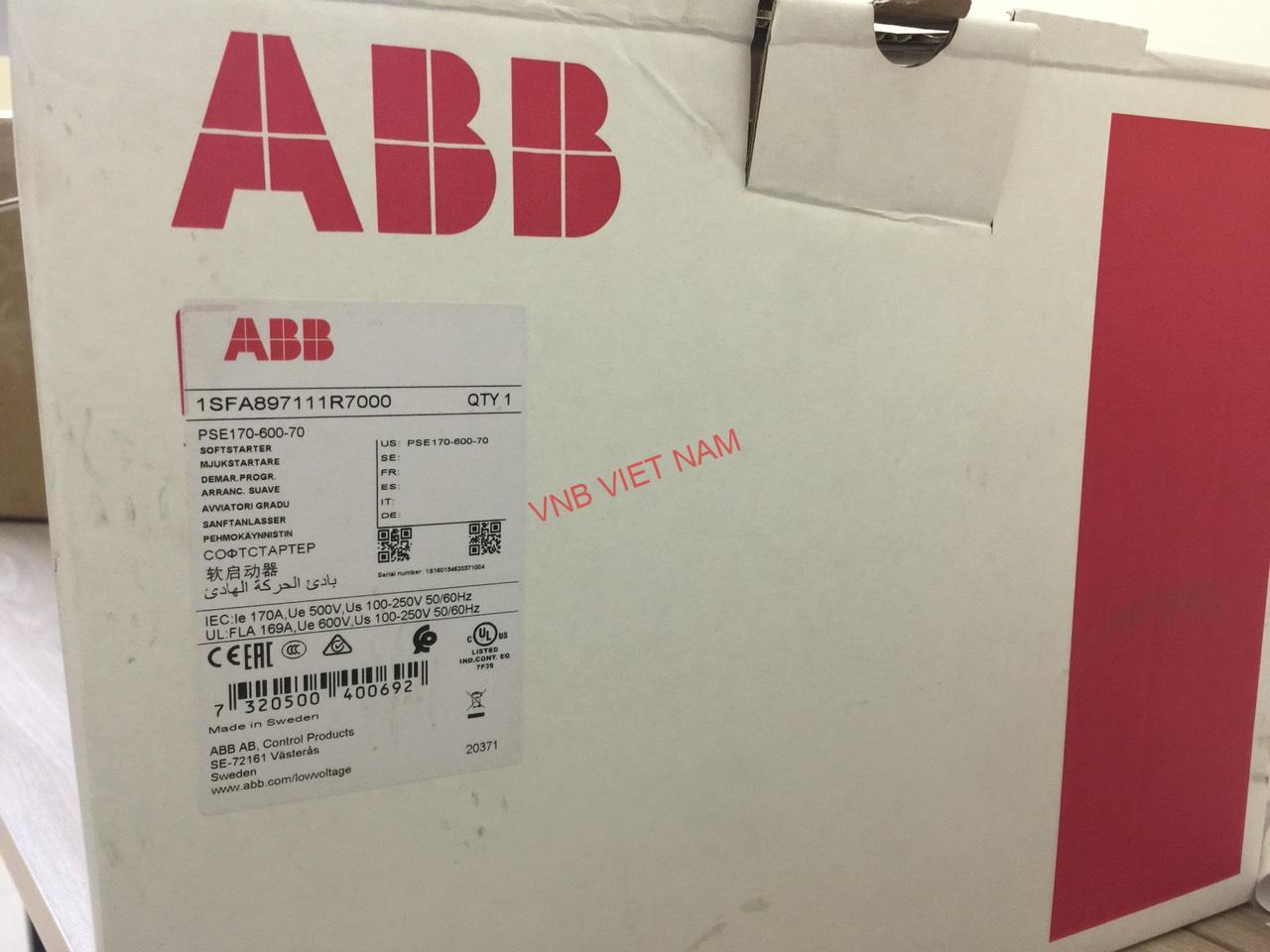

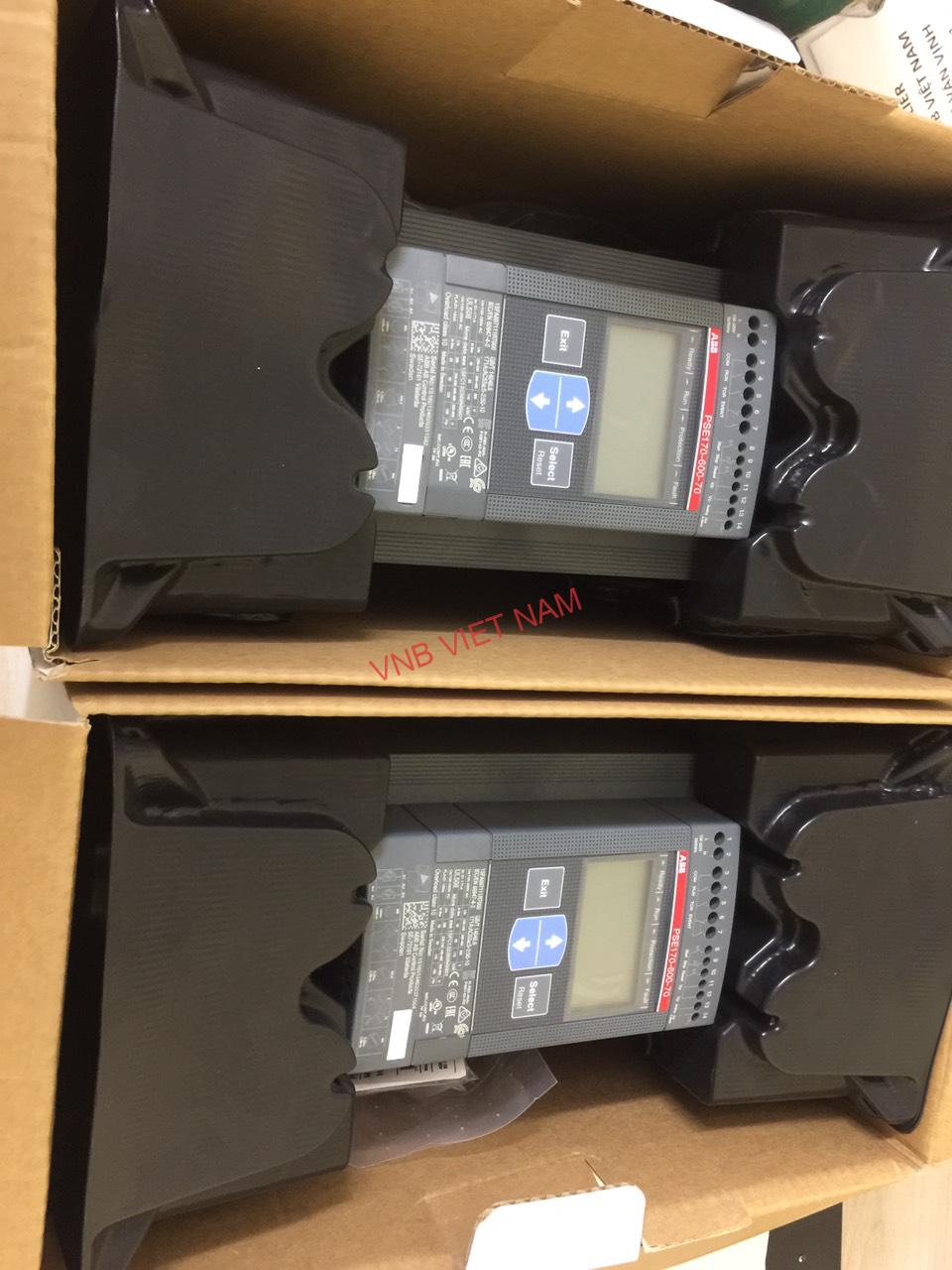

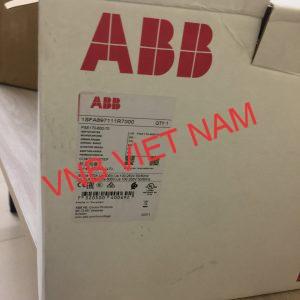

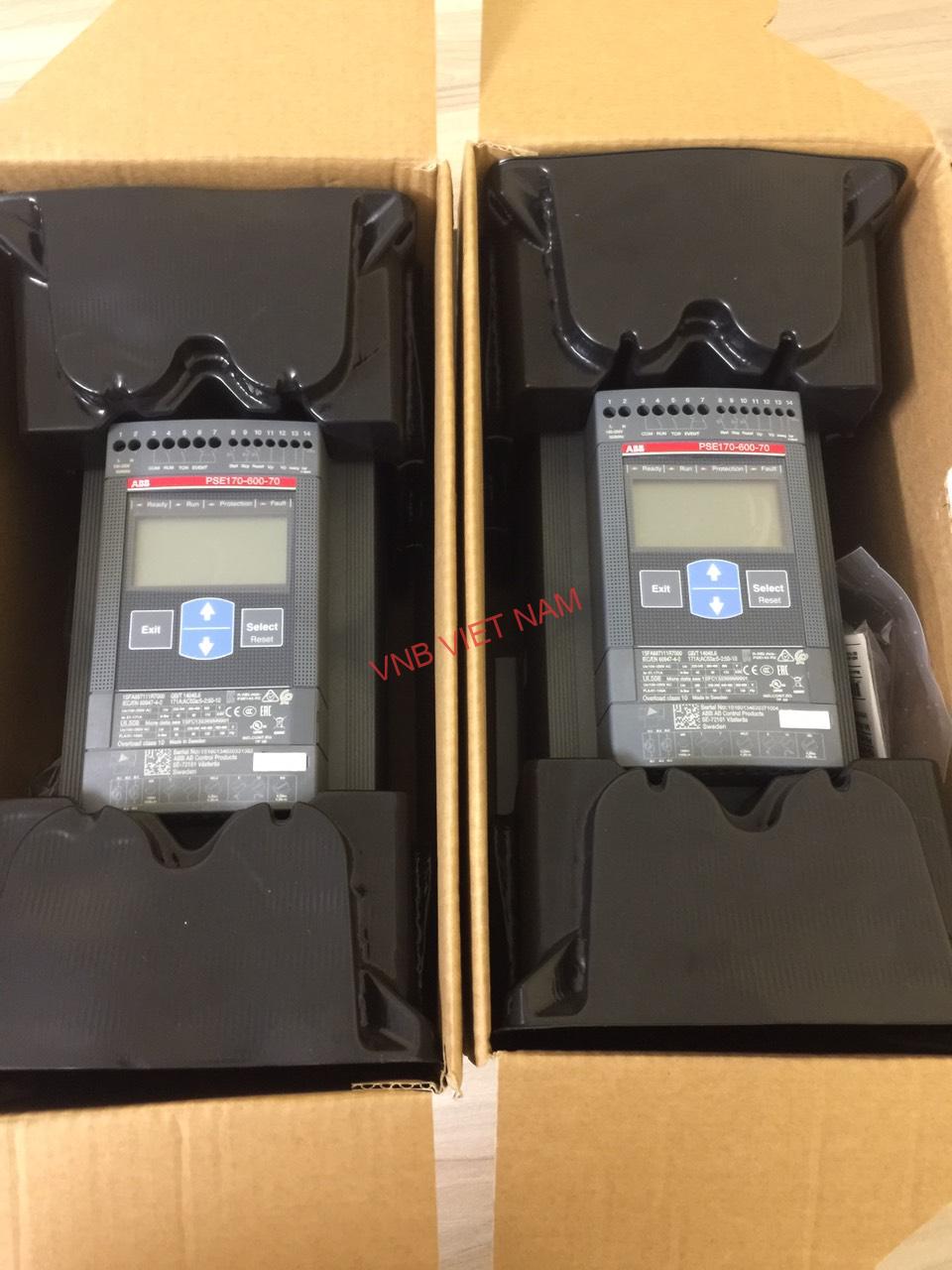

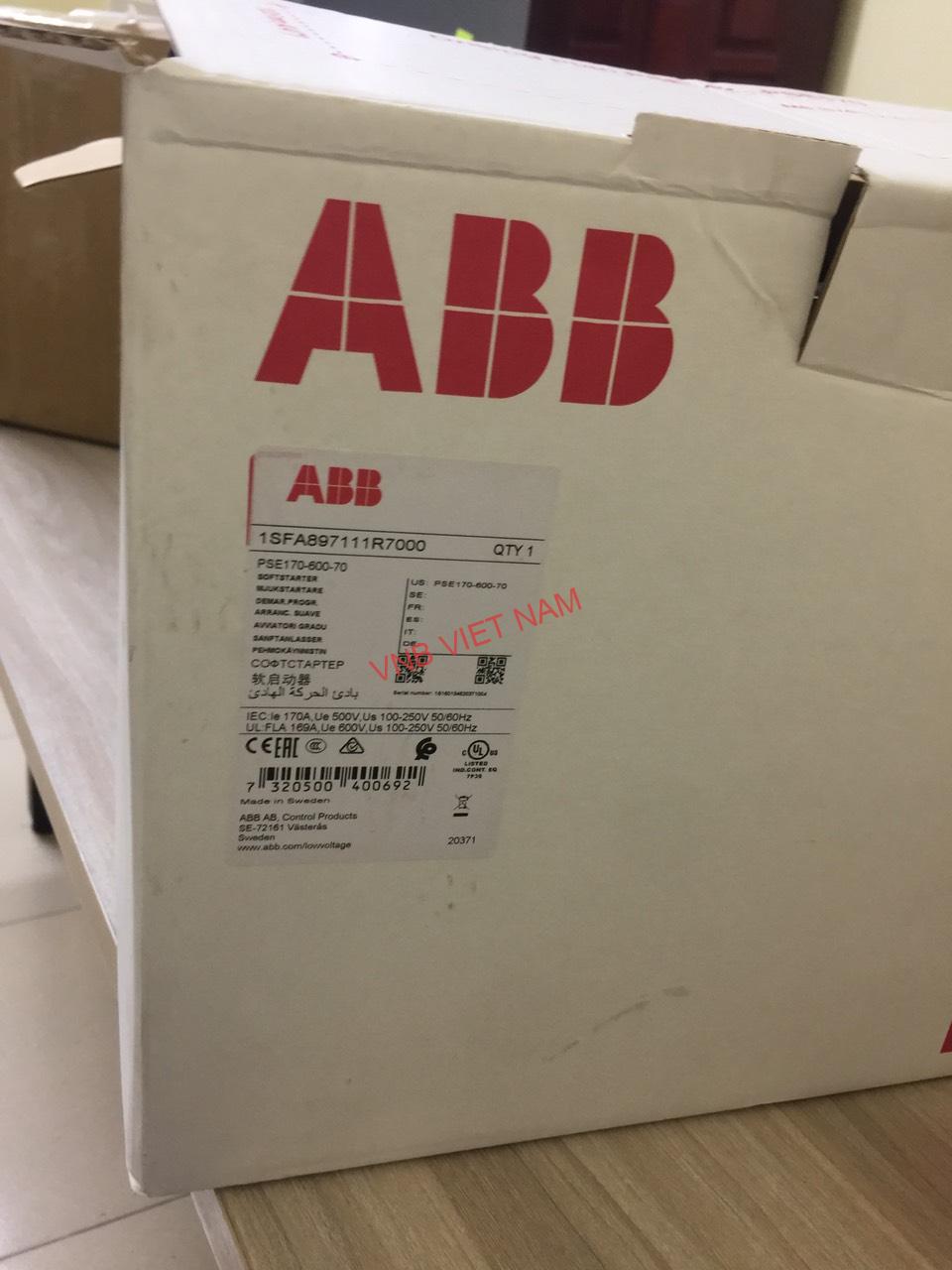

Khởi Động Mềm ABB PSE170-600-70, 90kW

• Data Sheet, Technical Information: 1SFC132005C0201

• Instructions and Manuals: 1SFC132057M0201



Dimensions

• Product Net Width: 130 mm

• Product Net Height: 295 mm

• Product Net Depth / Length: 220 mm

• Product Net Weight: 4.4 kg

Technical

• Rated Operational Voltage: 208 … 600 V AC

• Rated Control Supply Voltage (U_s): 100 … 250 V AC

• Rated Control Circuit Voltage (U_c): DC Operation 24 V

• Rated Frequency (f): 50/60 Hz ,Main Circuit 50/60 Hz

• Rated Operational Power – In-Line Connection (Pe):

  (230 V) 45 kW
  (400 V) 90 kW
  (500 V) 110 kW

• Rated Operational Current – In-Line Connection (Ie): 171 A

• Service Factor Percentage: 100 %

• Overload Protection: Build-in electronic overload protection

• Integrated Electronic Overload: Yes

• Adjustable Rated Motor Current Ie: 30 … 100 %

• Starting Capacity at Maximum Rated Current Ie: 4xIe for 10s

• Ramp Time:

  0 … 30 second [unit of time] 1 … 30 second [unit of time]

• Initial Voltage During Start: 30 … 70 %

• Step Down Voltage Special Ramp: No %

• Current Limit Function: 1.5 … 7xIe

• Switch for Inside Delta Connection: No

• Run Signal Relay: Yes

• By-pass Signal Relay: Yes

• Fault Signal Relay:  Yes

• Overload Signal Relay: Yes

• Analog Outputs: 4…20 mA

• Signal indication completed start ramp (LED): Green

• Signal indication ready to start/standby ON (LED): Green

• Signal indication running R (LED): Green

• Signal indication ramping up/down (LED): Green

• Signal indication protection (LED): Yellow

• Signal indication fault (LED):

  Red

• Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time: 10

• Communication: FiledBusPlug(Optional)

• Degree of Protection: IP00

• Terminal Type: Main Circuit: Bars

• Connecting Capacity Main Circuit:

  Hole Diameter 8.5 MMT mm²
  Width and Thickness 17.5×5 MMT

• Connecting Capacity Control Circuit:

  Rigid 1 x 2.5 mm²
  Rigid 2 x 1.5 mm²

• Connecting Capacity Supply Circuit: Rigid 1 x 2.5 mm²

• Tightening Torque:

  Control Circuit 0.5 N·m
  Main Circuit 18 N·m
  Supply Circuit 0.5 N·m

• Product Main Type: PSE170

Environmental

• Ambient Air Temperature:

  Operation -25 … +60 °C
  Storage -40 … +70 °C

• RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
