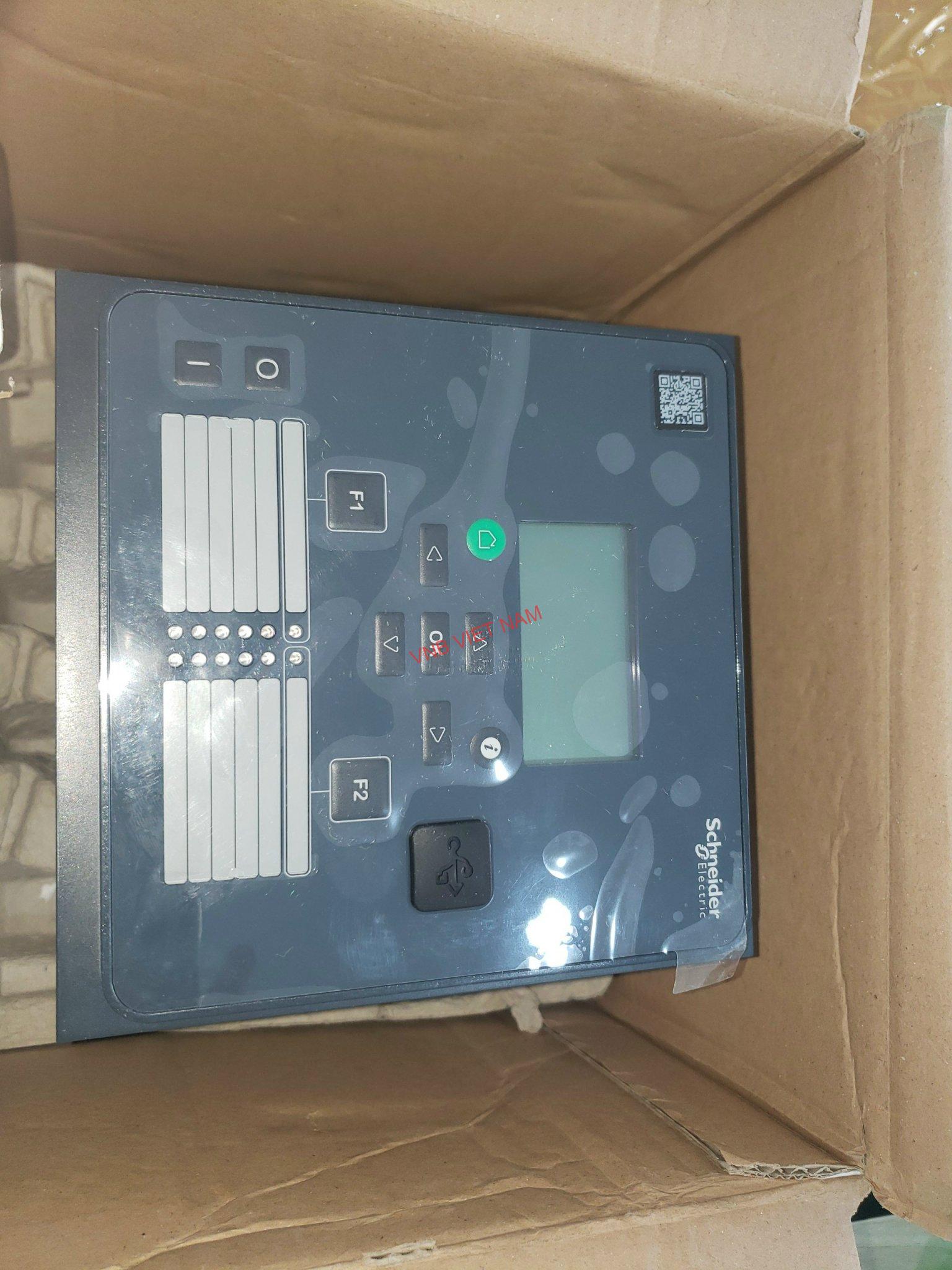

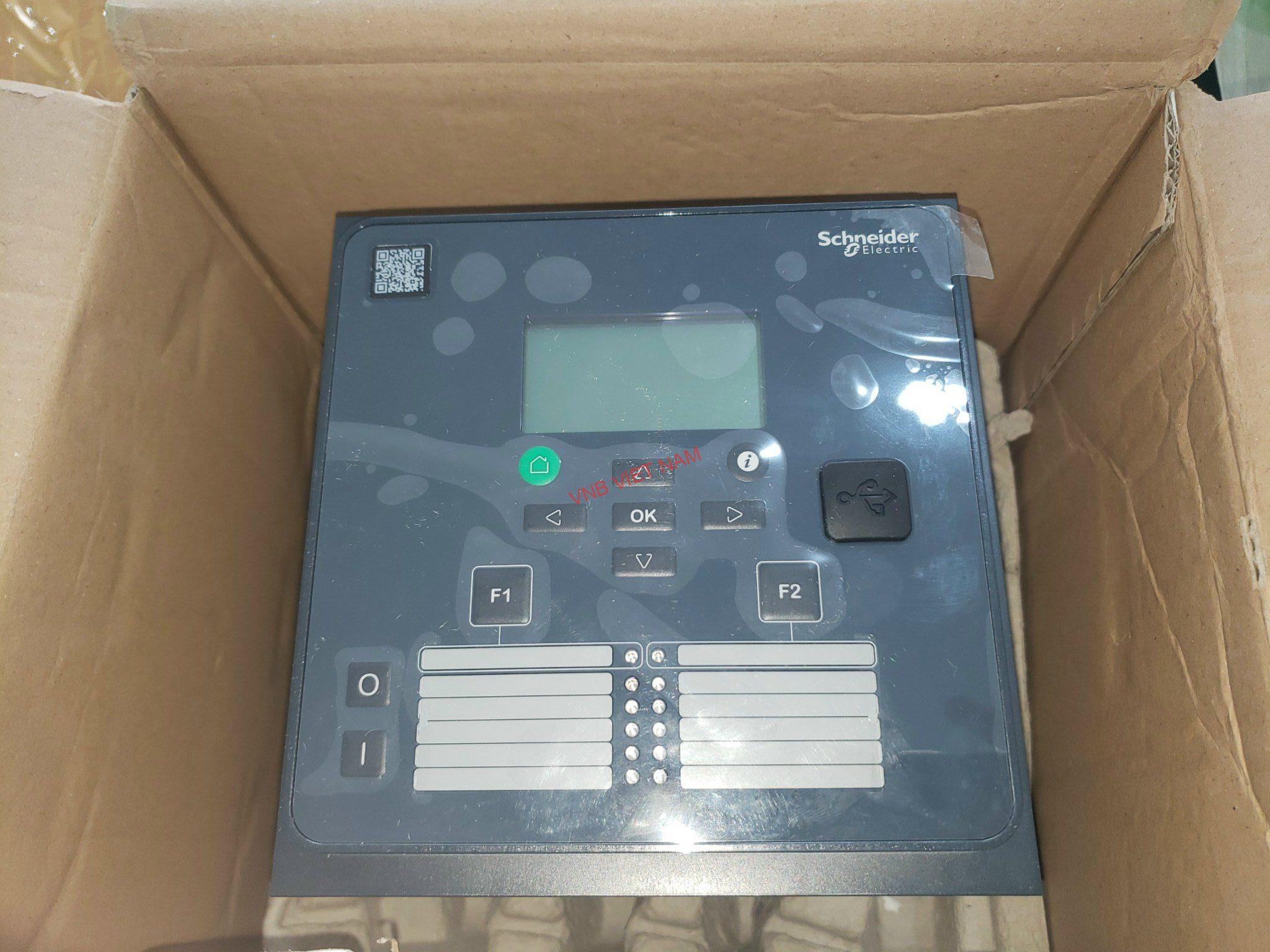

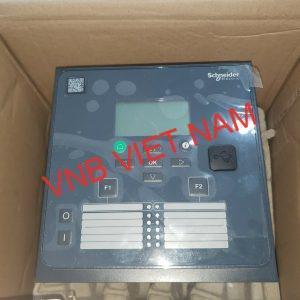

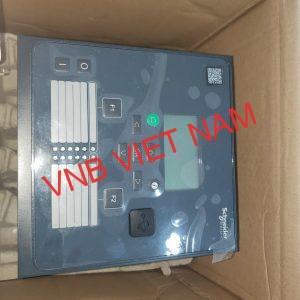

Protection relay Easergy P3U30-5AAA1BDAA

Liên Hệ

Protection relay Easergy

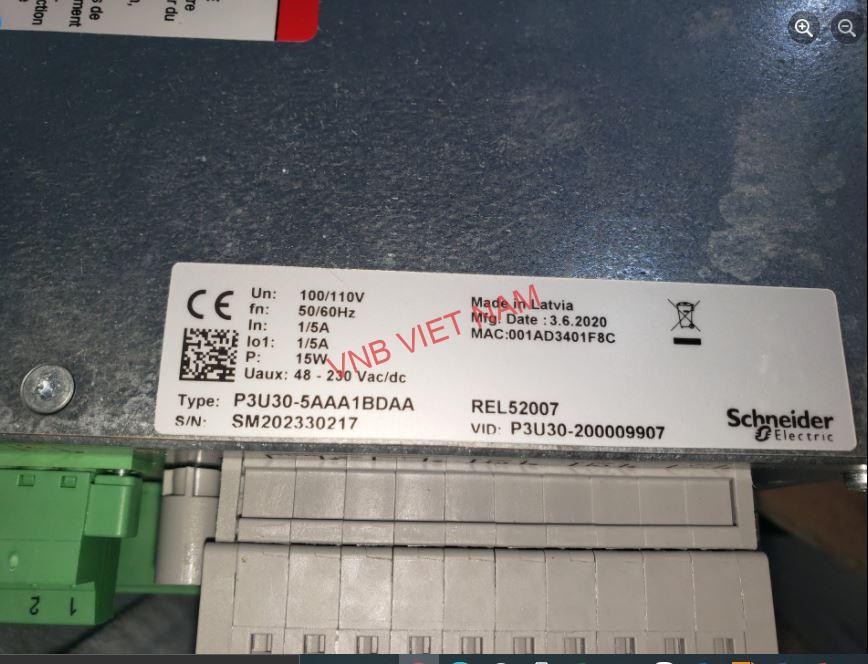

Model: P3U30-5AAA1BDAA ,REL52007

Hãng Sản Xuất: Schneider Origin: Latvia, China

Có đầy đủ CO,CQ, Bảo hành 12 Tháng

Thời gian giao hàng: 6 – 8 Tuần

Thông tin liên hệ:
Email: Contact@vnbvietnam.com.
Hotline: 0936 515 615 or 090609 1313 .

Liên hệ: 02466 735 668

Thông số kỹ thuật:

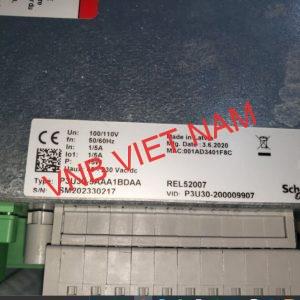

Protection relay Easergy P3U30-5AAA1BDAA, REL52007. REL52003

range of product	Easergy P3
product or component type	Protection relay
relay application	Universal
product reference	P3U30-5AAA1BDAA
power supply	48…230 V AC/DC
measuring inputs	: 1/5 A CT phase current 3 : 1/5 A CT residual current 1 : 100 V/110 V VT voltage 4
number of sensors	0 temperature sensor(s) 0 arc sensor(s)
number of Digital Inputs (DI)	16
number of Digital Outputs (DO)	1 watchdog 8
number of analogue inputs	0
number of analogue outputs	0
communication ports	USB port 1 front LC 2 rear
communication protocols	IEC 61850 ed. 1 IEC 61850 ed. 2 IEC 60870-5-101 DNP3 TCP Modbus TCP EtherNet/IP
redundancy communication port protocol	RSTP PRP
cybersecurity	Password protection Port hardening
protection functions	Phase overcurrent 50/51 Directional phase overcurrent 67 Earth fault overcurrent 50N/51N Directional earth fault 67N Transient earth fault 67NI Capacitor bank unbalance 51C Broken conductor 46 I2/I1 Cold load pick-up Switch ON to fault (SOTF) Breaker failure 50BF Directional active underpower 37P Fault locator 21FL Recloser 79 Phase undercurrent 37 Excessive starting time, locked rotor 48/51LR Motor restart inhibition 66 Capacitor overvoltage 59C Negative sequence overcurrent 46 Overvoltage 59 Undervoltage 27 Positive sequence undervoltage 27P Earth fault overvoltage 59N Underfrequency 81/81N Rate of change of frequency 81R Synchro-check 25 Lockout relay 86 CT supervision 60 VT supervision 60 H2 detection 68H2 H5 detection 68H5 Programmable stages 99 H5 detection Programmable curve
arc flash protection	No
measurement functions	Current 3-phase Current zero sequence Current positive sequence Current negative sequence Current ratio of negative and positive Voltage phase to earth Voltage phase to phase Voltage zero sequence Voltage positive sequence Voltage negative sequence Voltage ratio of negative and positive Short circuit fault reactance Fault location current Earth fault reactance Frequency Active power RMS active power Reactive power RMS reactive power Apparent power RMS apparent power Active energy Reactive energy Cos φ Tan φ Power angle Power factor Voltage phasor diagram view Current phasor diagram view Current 2nd, 15th harmonics with THD Voltage 2nd, 15th harmonics with THD Voltage interruption Condition monitoring CB wear
control functions	Switchgear control and monitoring Programmable switchgear interlocking Local control on single-line diagram Local control with I/O keys Local/remote control 2 function keys Mobile application with Easergy SmartApp Web-server Programmable logic
controllable switchgear devices	4 controlled + 8 displayed
number of setting groups	4
monitoring functions	Trip circuit supervision 74 Circuit breaker monitoring Relay self-monitoring
logs and records	Event recording Disturbance recording Tripping context
switchgear diagnosis type	CT/VT supervision ANSI code: 60 CT supervision Trip circuit supervision ANSI code: TCS
connections – terminals	Screw removable (digital input/output) Pin removable (current transformer) Pin removable (voltage transformer)

Complementary
operating threshold	24…230 V AC/DC
time synchronisation protocol	SNTP
web server	Embedded HTTP server
software name	EcoStruxure Power Device ESetup Easergy Pro
number of key	2 customizable
local signalling	4 LEDs 8 LEDs programmable
standards	IEC
height	169.5 mm
width	170 mm
depth	205 mm
net weight	2.5 kg maximum
