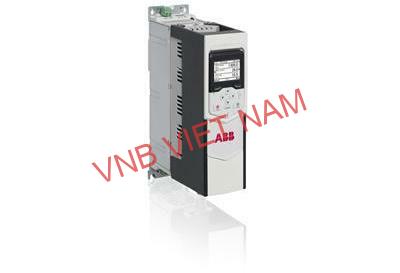

Biến Tần ABB ACS880-104-0130A-7+N8010, 110kW

Biến Tần ABB ACS880-104-0130A-7+N8010, 110kW, 690V, 94A

Inverter module ABB (ACS880 modules) – Rated input voltage 525Vac-690Vac (575Vac / 600Vac / 660Vac) (3-phase / 3P) – Rated current 125A (Nominal; 690Vac) – Rated power 110kW (Nominal; 690Vac) – Frame size R6i – with Modbus / PROFINET / PROFIsafe communication capability – with built-in STO Safe Torque OFF (SIL3 as per IEC 61511 / SILCL3 as per IEC62061 / PLe ISO13849-1)

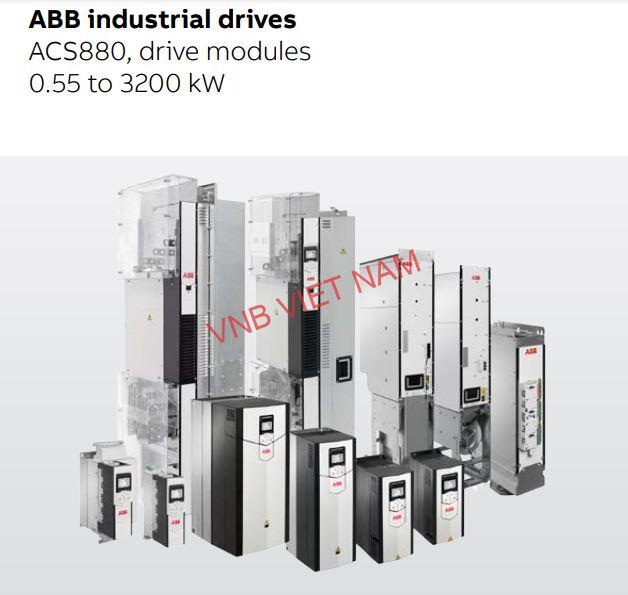

Product series / family name: ACS880 modules

Supply voltage (AC): 525Vac-690Vac (575Vac / 600Vac / 660Vac)

Functions: Inverter module unit (INU)
STO Safe Torque OFF (SIL3 as per IEC 61511 / SILCL3 as per IEC62061 / PLe ISO13849-1)

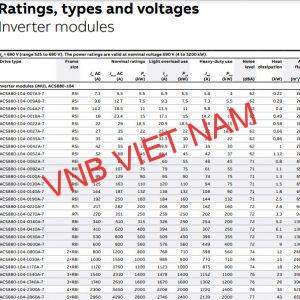

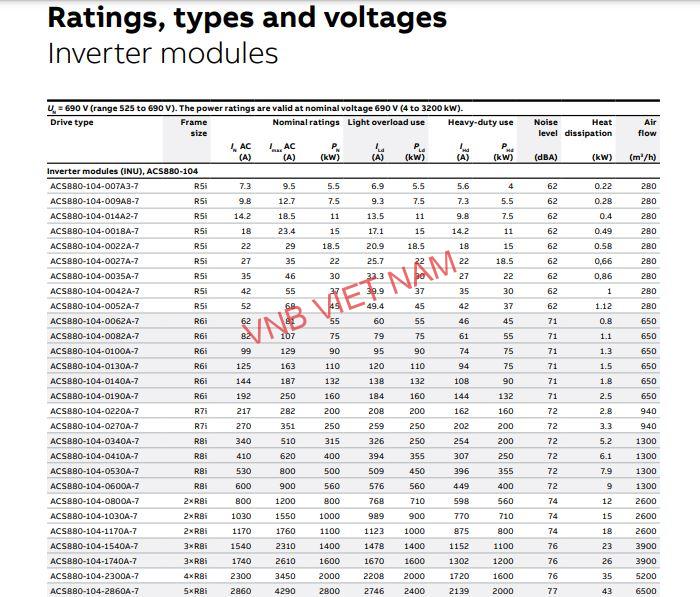

Rated current:

125A (Nominal; 690Vac)
120A (Light Overload; 690Vac)
94A (Heavy Duty; 690Vac)
163A maximum

Rated active power (kW):

110kW (Nominal; 690Vac)
110kW (Light Overload; 690Vac)
75kW (Heavy Duty; 690Vac)

Communication protocol:

Modbus
PROFINET
PROFIsafe

Dimensions

Frame size R6i

Ambient air temperature for operation: -40…+70 °C

Protection functions:

Safe Stop 1 (SS1)
Safely-Limited Speed (SLS)
Safe Stop Emergency (SSE)
Safe Brake Control (SBC)
Safe Maximum Speed (SMS)
Prevention of Unexpected Startup (POUS)
Safe DIrection (SDI)
Safe Speed Monitor (SSM)

Compliant with standard(s): CE
IEC60721-3-1 Class 1C2; 1S2
IEC60721-3-2 Class 2C2/3C2; 2S2
IEC60721-3-3 Class 3C2; 3S2
IEC61508 ed2 SIL 3
IEC61511 SIL 3
IEC61800-5-2
EN/IEC62061 SIL CL 3
EN ISO13849-1 PL e
EN61800-5-2
cUL
UL
CSA
GOST R
EAC
RoHS
ABS
Bureau veritas
CCS
DNV GL
Lloyd’s
NK
RINA
TUV Nord
ATEX

Power dissipation/losses: 1.5kW / 1500 W

Type of network: 3-phase / 3P

Application type

Machinery drives
mixers
centrifuges
conveyors
cranes
requiring accurate speed and torque control

Network frequency: 50-60 Hz
