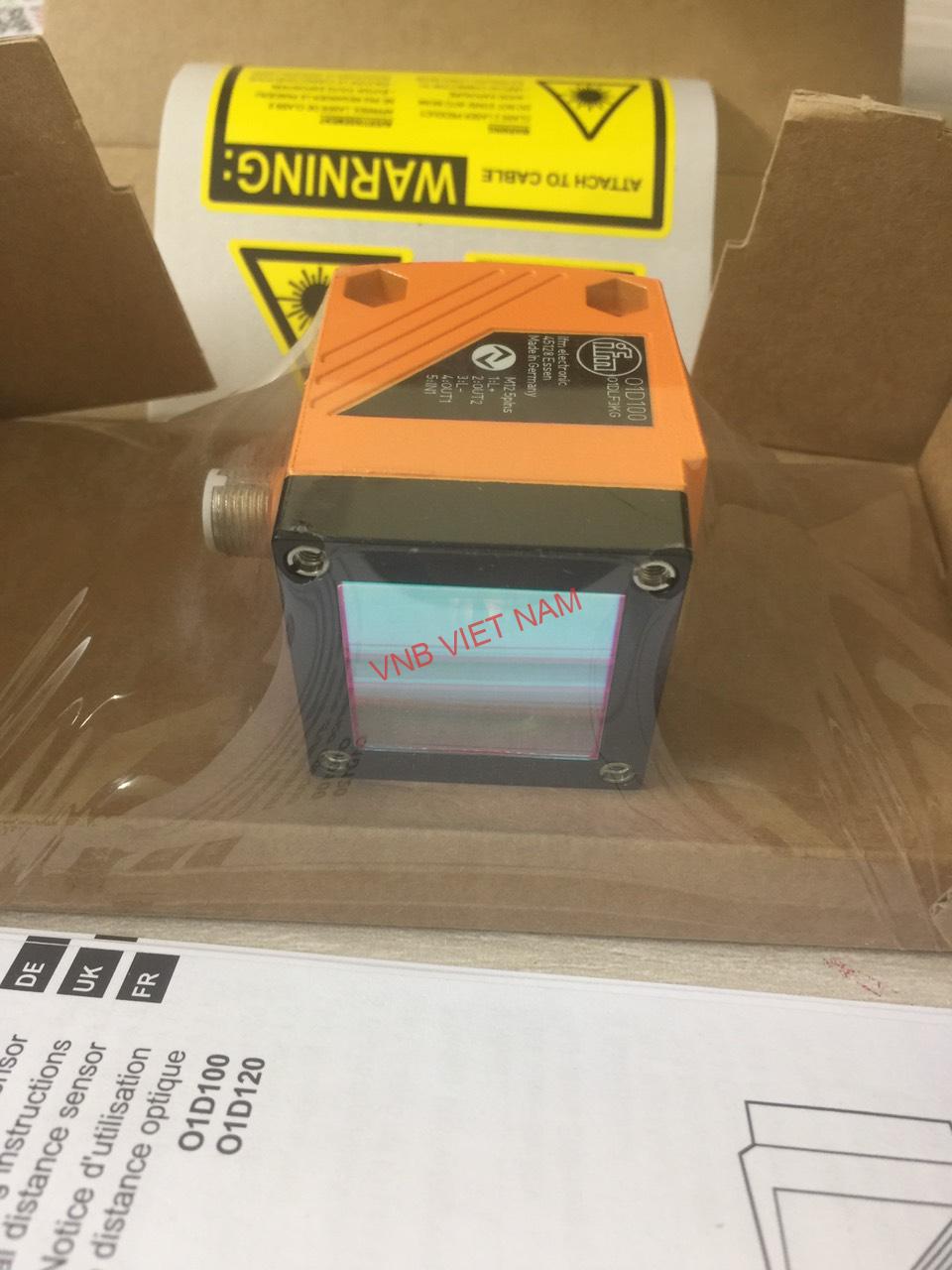

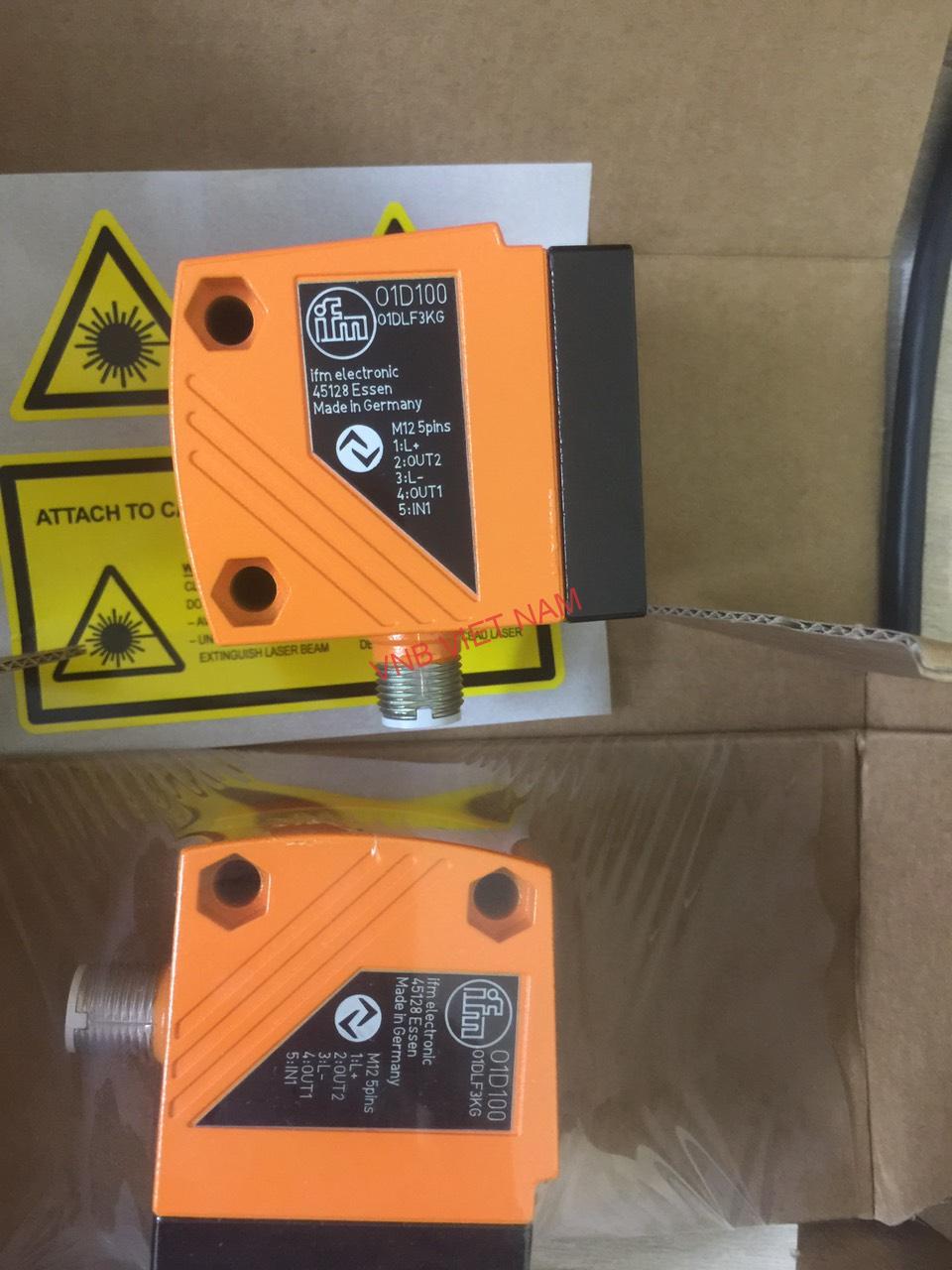

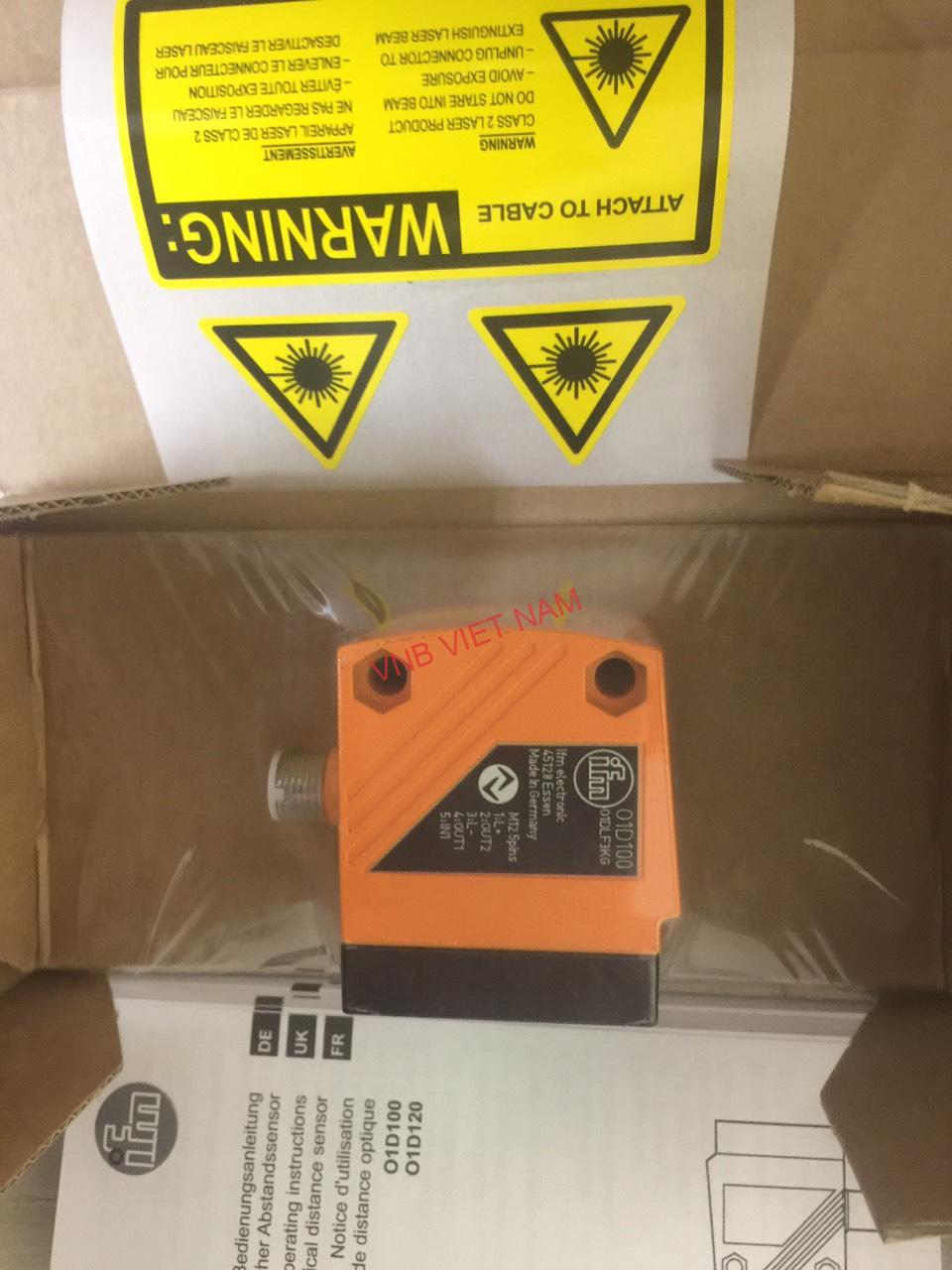

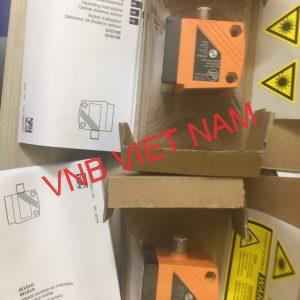

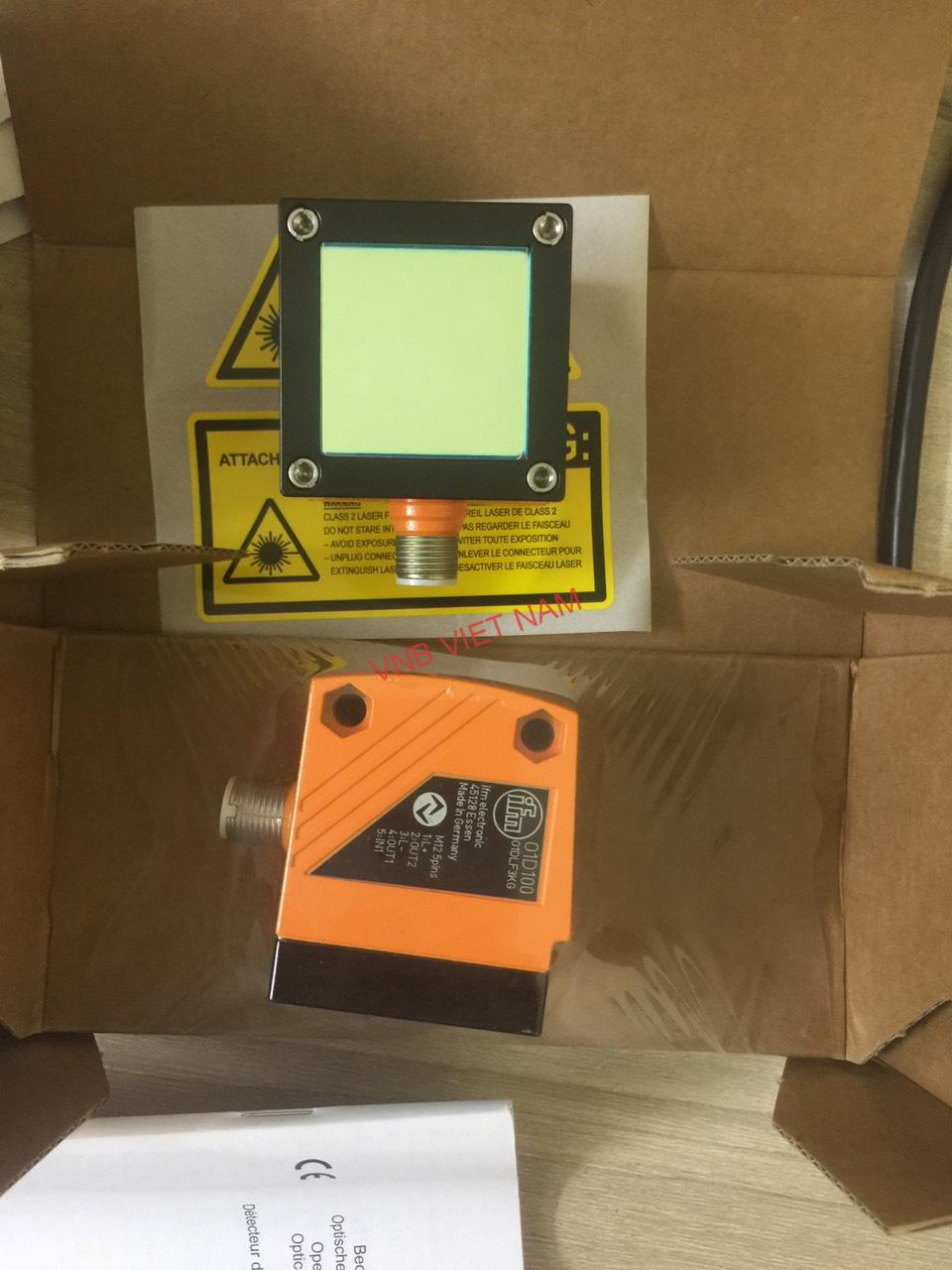

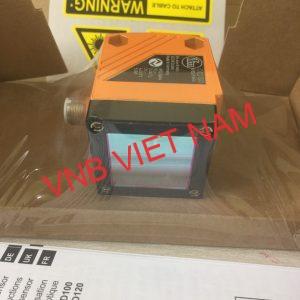

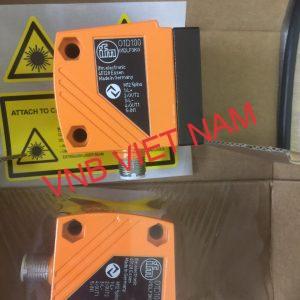

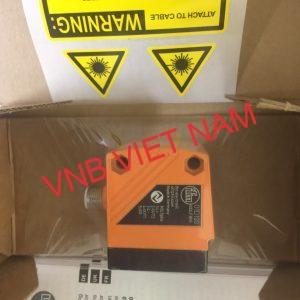

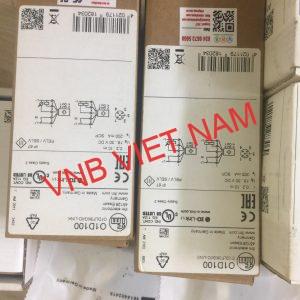

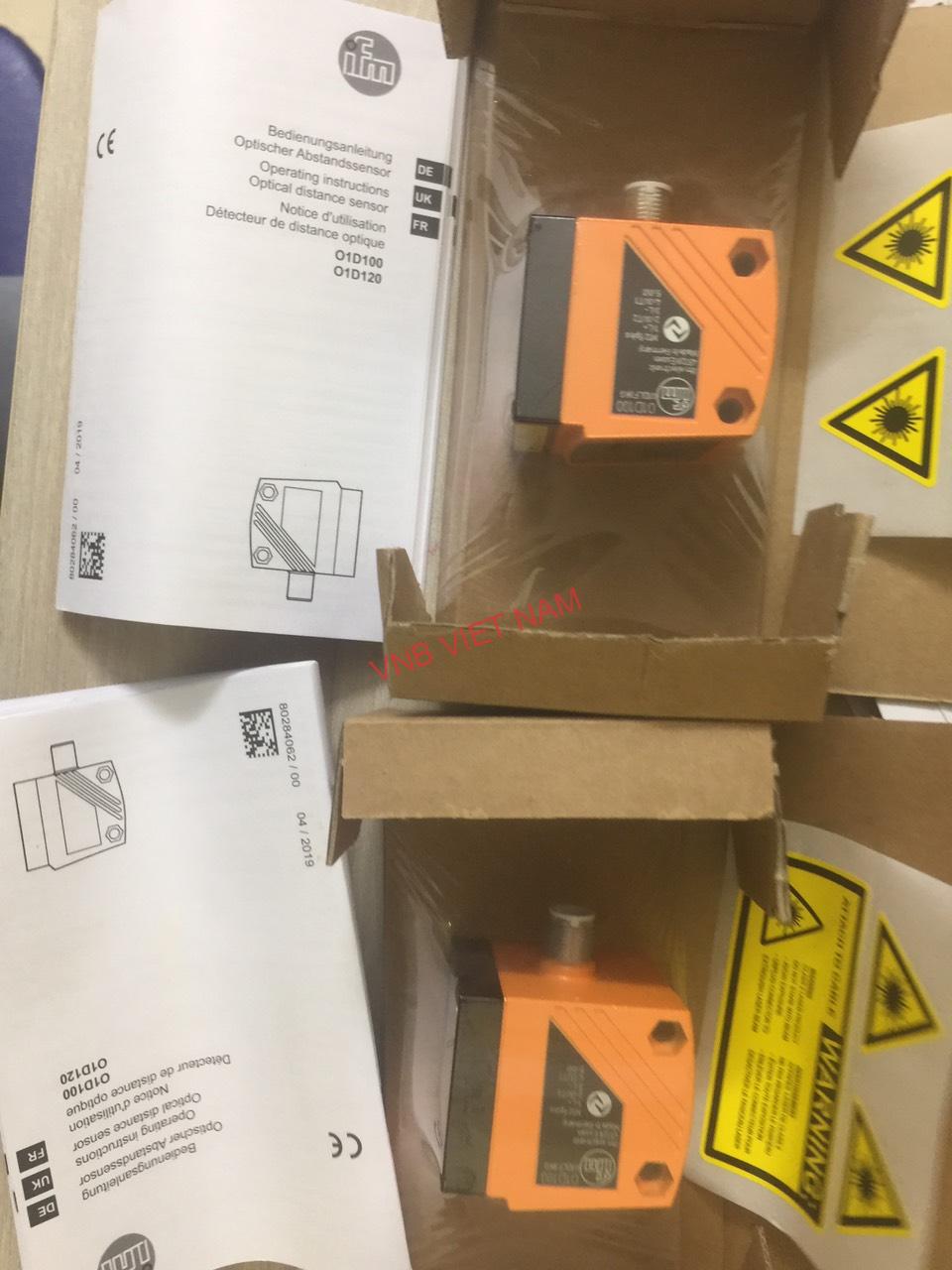

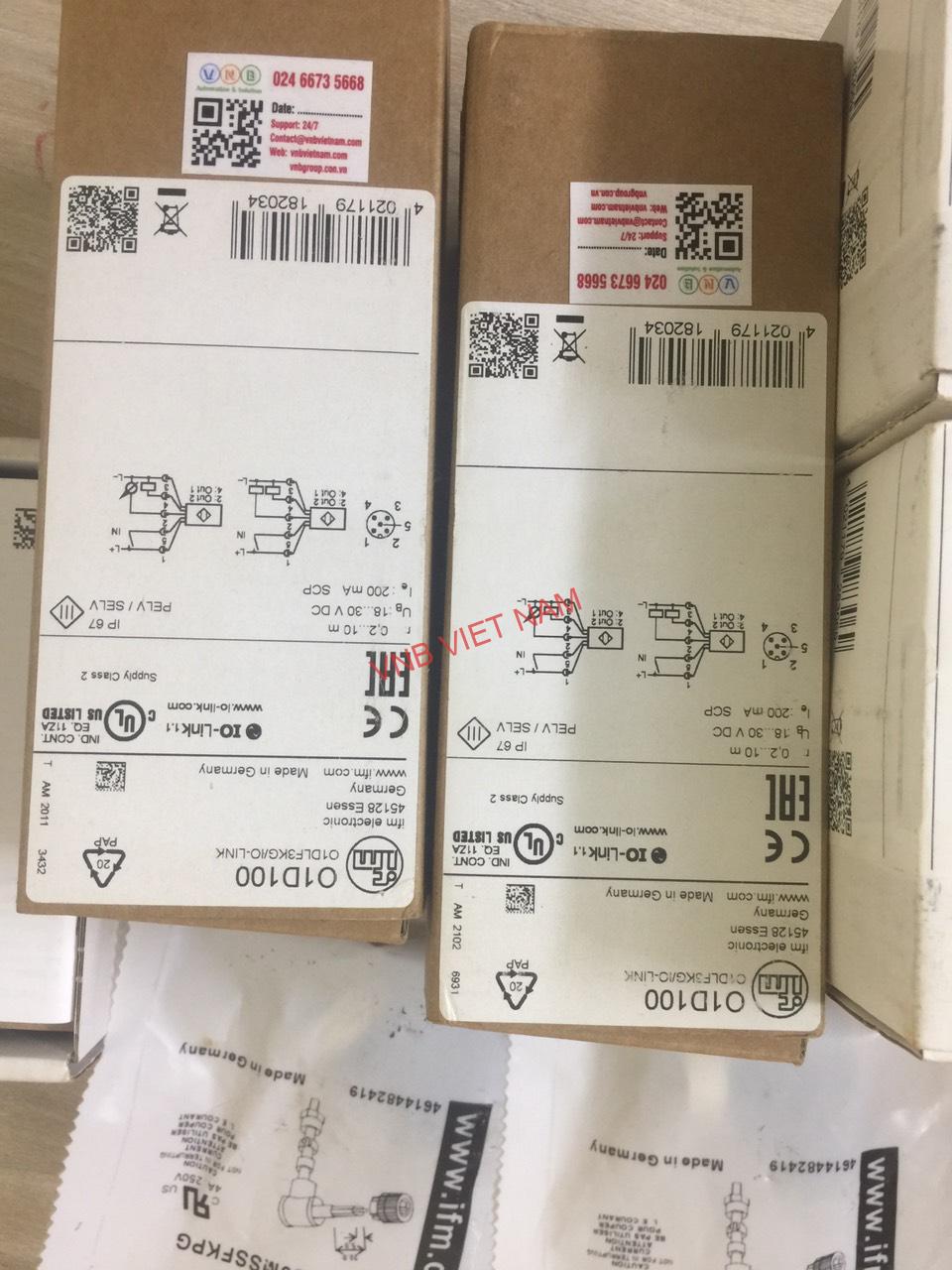

Photoelectric distance sensor IFM O1D100 + E11714
Liên Hệ
Photoelectric distance sensor IFM

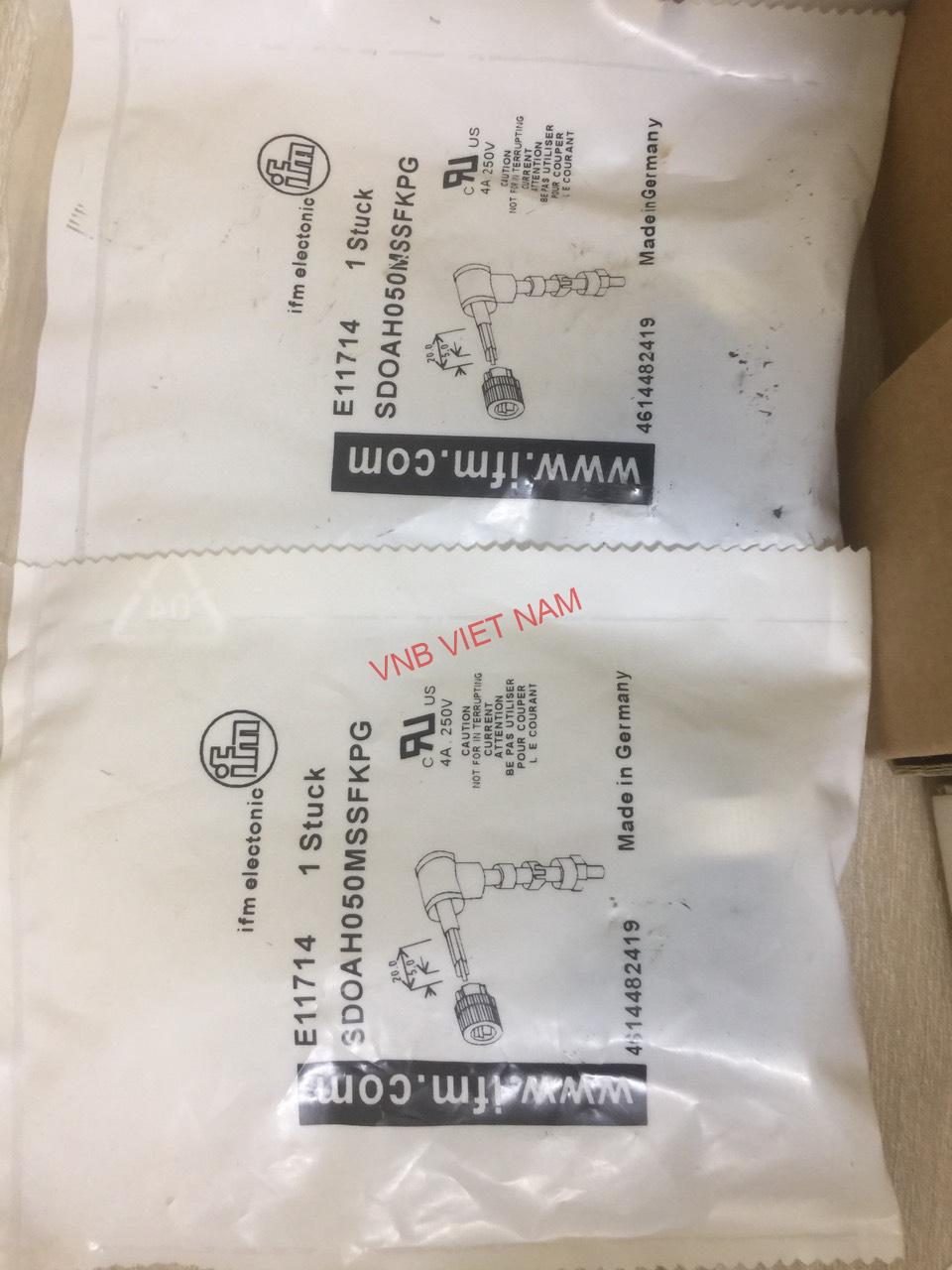

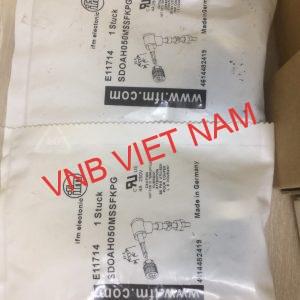

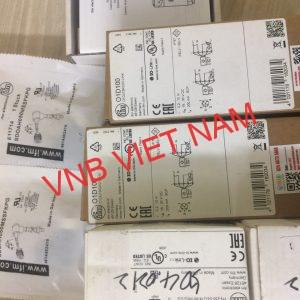

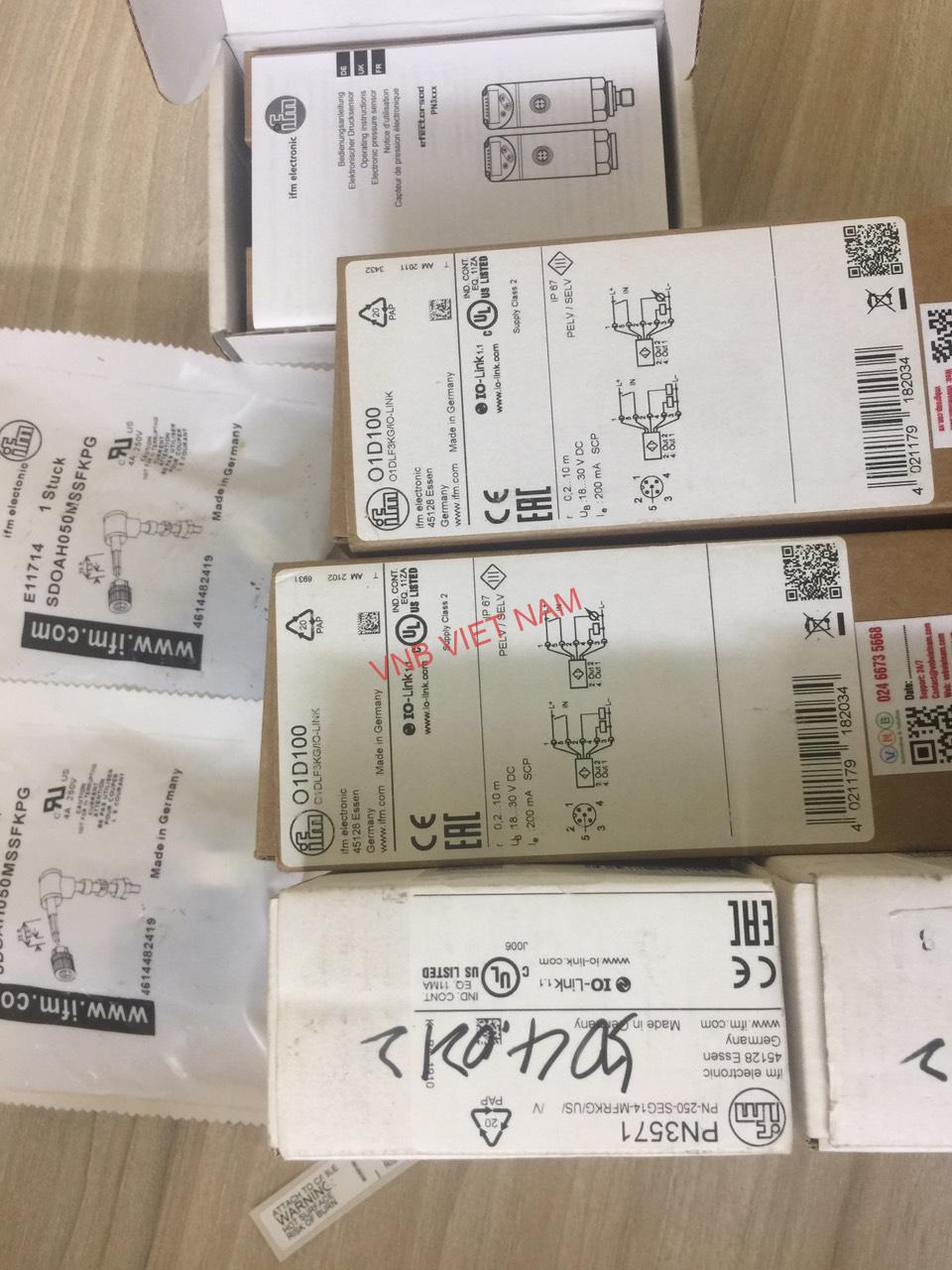

Model: IFM O1D100 + E11714 ( Jack chữ L)
Brand: IFM / Germany
Có CO,CQ đầy đủ
Bảo hành 12 Tháng
Thông tin liên hệ:
Email: Contact@vnbvietnam.com | Justin.nguyen@vnbvietnam.com
Liên hệ: 02466 735 668
Photoelectric distance sensor IFM O1D100 + E11714
- Reliable optical distance measurement with high ranges up to 10 m
- Two switching outputs, one of them programmable as analogue output
- Scalable measuring range and window function
- Use in applications with background suppression
- Excellent price/performance ratio
| Product characteristics | |||||
|---|---|---|---|---|---|
| Measuring range [m] | 0.2…10; (white paper 200 x 200 mm 90% remission) | ||||
| Communication interface | IO-Link | ||||
| Laser protection class | 2 | ||||
| Housing | rectangular | ||||
| Dimensions [mm] | 59 x 42 x 52 | ||||
| Electrical data | |||||
| Operating voltage [V] | 18…30 DC; (operating voltage “supply class 2” according to cULus) | ||||
| Current consumption [mA] | < 150 | ||||
| Protection class | III | ||||
| Reverse polarity protection | yes | ||||
| Typ. lifetime [h] | 50000 | ||||
| Inputs / outputs | |||||
| Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 | ||||
| Outputs | |||||
| Total number of outputs | 2 | ||||
| Electrical design | PNP | ||||
| Number of digital outputs | 2 | ||||
| Output function | normally open / normally closed; (parameterisable) | ||||
| Max. current load per output [mA] | 200 | ||||
| Number of analogue outputs | 1 | ||||
| Analogue current output [mA] | 4…20; (IEC 61131-2) | ||||
| Max. load [Ω] | 250 | ||||
| Analogue voltage output [V] | 0…10; (IEC 61131-2) | ||||
| Min. load resistance [Ω] | 5000 | ||||
| Short-circuit protection | yes | ||||
| Type of short-circuit protection | pulsed | ||||
| Overload protection | yes | ||||
| Detection zone | |||||
| Max. light spot width [mm] | 15 | ||||
| Max. light spot height [mm] | 15 | ||||
| Light spot dimensions refer to | 10 m | ||||
| Background suppression [m] | 0…19 | ||||
| Measuring/setting range | |||||
| Measuring range [m] | 0.2…10; (white paper 200 x 200 mm 90% remission) | ||||
| Sampling rate [Hz] | 1…50 | ||||
| Interfaces | |||||
| Communication interface | IO-Link | ||||
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 | ||||
| Profiles | Smart Sensor: Sensor Identification; Binary Data Channel; Process Value; Sensor Diagnosis | ||||
| SIO mode | yes | ||||
| Required master port type | A | ||||
| Process data analogue | 2 | ||||
| Process data binary | 3 | ||||
| Min. process cycle time [ms] | 6 | ||||
| Supported DeviceIDs |
|
||||
| Operating conditions | |||||
| Ambient temperature [°C] | -10…60 | ||||
| Protection | IP 67 | ||||
